SportsEdge Solutions

Let our experts help you design your track or athletic field project with the track drain systems, turf anchors, and sports field equipment best suited for your application and budget.

Su guía completa sobre Equipos de construcción para instalaciones deportivas

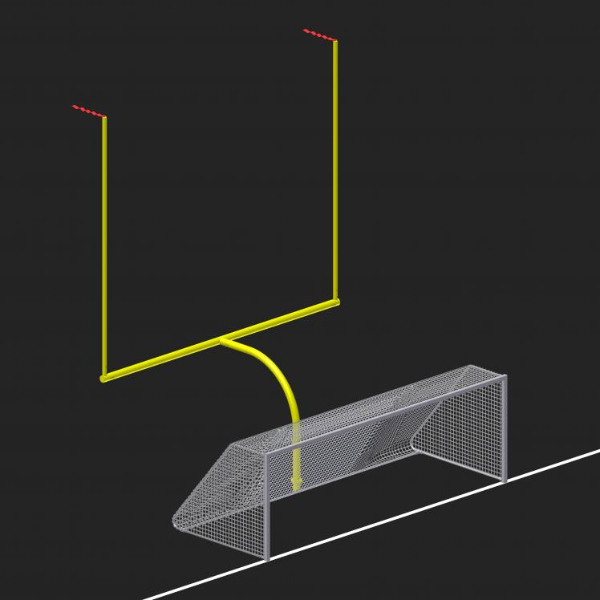

ROTATING FOOTBALL GOAL

THE PROBLEM: Combination Football/Soccer Fields

RICOCHETS: Which crossbar did the soccer ball hit? Is it in or out?
SHORTER SOCCER FIELD: Pulling the soccer goal in 2 yards at each end of the field reduces the size of the field.
ADDITIONAL LINES: When pulling soccer goals in, additional lines are needed in the middle of the football end zone.

THE SOLUTION: Rotating Football Goal!

This revolutionary Rotating Football Goal Post (Patent Pending) solves a long standing problem for combination football & soccer fields.

NO MORE REBOUND off football goals during soccer games.
FULL LENGTH SOCCER FIELD
SIMPLE & SMOOTH OPERATION by one person.
SECURELY LOCKED in place in both football and soccer positions.

POWERHOUSE BATTING CAGES

SUPERIOR DESIGN

Four-pole design means an open cage with the net hanging freely to stop balls without a rebound
Heavy-duty poles can endure high wind loads and other abuse such as from lawn mowers
Tensioning system will keep your net from sagging; heavy-duty cables with 24" of adjustment for future tightening
Net is easily removed for storage when not in use

BUILT TO LAST

8-5/8" diameter structural steel poles rated for 120 mph wind loads
Premium coating (STRYK 5388) same as used on the Trans-Alaska Pipeline
Heavy-duty 3/16" galvanized aircraft cable
HDPE net machine sewn borders and ribs

ECONOMICAL

Competitive with inferior designed cages with numerous smaller diameter poles

STANDARD SIZES

Single Cages
- 12'H x 14'W x 70'L Baseball Cage
- 12'H x 14'W x 55'L Softball Cage
Double Cages
- (2) 12'H x 14'W x 70'L Baseball Cage
- (2) 12'H x 14'W x 55'L Softball Cage

SportsEdge® PowerHouse Batting Cages are designed using the highest quality materials and will provide the owner a strong, durable cage that will stand the test of time. Don’t settle for anything less! Please call 800-334-6057 or email us at info@sportsedge.com if you would like additional information or specifications.

SportsEdge® Drain Systems

Surface drain systems for tracks, bleachers, tennis courts & baseball applications.

XT Slot Drain
Pro-S Channel Drain
Pro-L Channel Drain
PolyDrain® Presloped Channel Drain

SportsEdge® HQ Drain Systems

Subsurface Drain systems for Synthetic Turf and Natural Turf Fields applications.

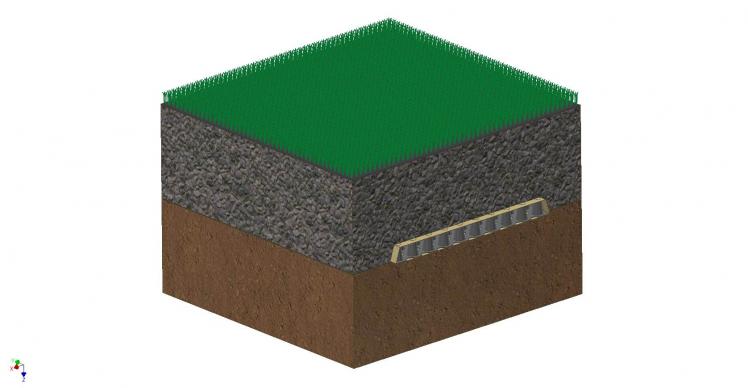

SportsEdge® HQ Strip Drain offers significantly higher water collection and evacuation rates than stone or perforated pipe drains. This two-part pre-fabricated system consists of a solid formed polystyrene perforated core fully wrapped with a non-woven spun-bound polypropylene filter fabric. The high strength filter fabric allows water to pass freely into the core while restricting any movement of rubber, sharp stones or other particles that might clog the core. The core allows water to flow to designated drainage exits. This high compressive strength, prefabricated drain is made from RECYCLED MATERIALS and is available in 6", 12", 18", and 24" rolls.
SportsEdge® HQ100 & HQ200 offer full surface drainage solutions for synthetic turf applications. This patented three-part pre-fabricated system consists of a high compressive strength, solid formed polystyrene core with a non-woven polypropylene filter fabric on the dimple side and a cushioning fabric on the back side. The filter fabric allows water to pass freely into the core while restricting the movement of rubber or other particles that might clog the core. The cushioning fabric provides sound insulation for the playing surface. Roll Size — 4' x 120'.
RECYCLED CONTENT: SportsEdge® HQ Strip Drain and Sheet Drain products are manufactured with post industrial recycled content.

Football Goals

Rotating Football Goal — 8' Offset
8' Offset — Standard
6.5' Offset
Goal Post Pads
Ball Stop System

Soccer Equipment

Official Soccer Goals
Club Goals
Soccer Goal Anchors
Soccer Accessories

Track & Field Equipment

Long Jump Sand Pit Covers
Pole Vault Boxes & Covers
Shot/Discus Rings & Throw Circles
Shot Put Toe Boards
Take-Off Boards
Lane Gates
Discus/Hammer Cages
Portable Discus Cage & Platform
Track Curbing
Steeple Chase Pit Forming System
Steeple Chase Hurdle, Barrier
Steeple Chase Pit Covers

Baseball Equipment

Batting Cages
Foul Poles
Bases, Home Plate, Pitching Rubber
Team & Player Benches
Portable Bleachers
Wall & Chain Link Fence Padding
Fence Guard/Fence Cap
Batting Tunnel Frames & Netting
Temporary Fencing

Benches & Bleachers

Team & Player Benches
Portable, Permanent & Surface Mounted Benches
Outdoor Bleachers: 3,4,5, and 10 Row
Universal Enclosure
Scorers Table
Powder Coated Colors Available

Padding

Pole Vault Pit Landing System
High Jump Pit Landing System
Goal Post Pads
Light Pole Pads
Field Wall Pads
Guard Rail Pads
Custom Padding

Communication/Electrical Boxes

Communications/Electrical Box for use in athletic fields

Basketball Equipment

Outdoor Goals, Backboards, Nets & Uprights

Tennis Equipment

Tennis Nets, Posts, Windscreens & Accessories

Infill Turf Anchor/Edge Detail

Clean finished edge detail for bordering infill turf.

Flagpoles

SportsEdge to be partnered with American Flagpole with their more than 70 years of engineering, manufacturing and experience.

Lacrosse Goals

Official Lacrosse Goal #LG-50 by JayPro, 6'H X 6'W X 7'D meets all NCAA and NFHS requirements for men’s lacrosse
Official Lacrosse Goal #2E201 by KWIKGOAL®, 6'H X 6'W X 7'D meets all NCAA and NFHS requirements for men’s lacrosse

Field Hockey Goals

Official Field Hockey Goal #2F501 by KWIKGOAL®, 7'H X 12'W X 44-5/8"D meets all NCAA, NFHS & FIH specs, All Aluminum Construction
Official Field Hockey Goal #OFHG7124 by JayPro, 7'H X 12'W X 4'D — 2" square steel goal face with 1-5/16" O.D. galvanized steel rear frame, entire goal powder coated white

Ball Stop Safety Systems

Various sports often share athletic fields. This situation can creates interference, congestion and stray balls. Fabricated from 4" diameter, 1/8" wall aluminum tube. All poles stand in 40" deep vertical ground sleeves fabricated from galvanized steel. Poles can be removed, but are of substantial weight and are for more permanent applications. A 1/8" vinyl covered steel cable runs through the top and the bottom of the net to minimize sag and to prevent balls from rolling underneath. The 1-3/16" square mesh weather treated net with 1/4" roped edge and has a break strength of 180 lb. Ball Stop systems are available 10'H or 20'H with straight poles, or 20'H with offset poles. Sold in 20' sections.

Rollout Rubber Runway

Installs quickly over worn runways or where none exists. No bonding necessary, but can be done if required. Order by the length required. Sold by the linear foot.

Track Protectors

Tough geotextile fabric resists and cushions against cleats, but rain drains thru. Bench Zone units are designed for tracks that fit tightly around football fields. Cross-Over Zone units allow teams, people, and vehicles to cross without damaging modern track surfaces. EASY TO INSTALL & REMOVE. Edgings in Gold, White, or Custom Color. Multi-color imprinting can be overlaid.
Standard Sizes:
- Bench Zone: 15' deep x 75', 100', 125', or 150'.
- Cross-Over Zone: 7.5' or 15' wide x 30', 40', or 50' length
- CUSTOM SIZES AND SHAPES AVAILABLE.

Scoreboards

Baseball/Softball
Football/Track
Soccer/Multisport

All products available in Canada and Mexico.
