Sports Channel Drain System
The Operative Word

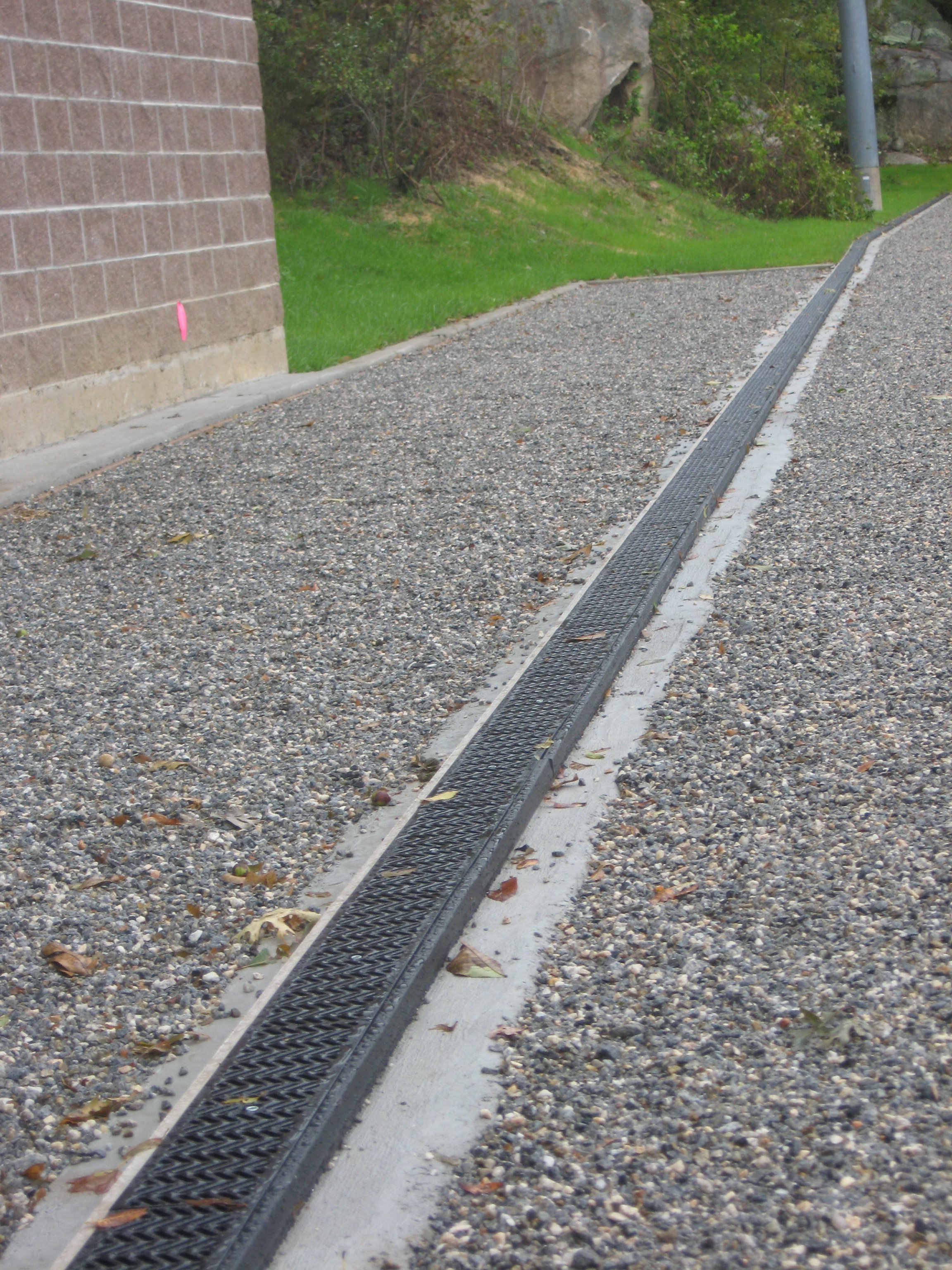

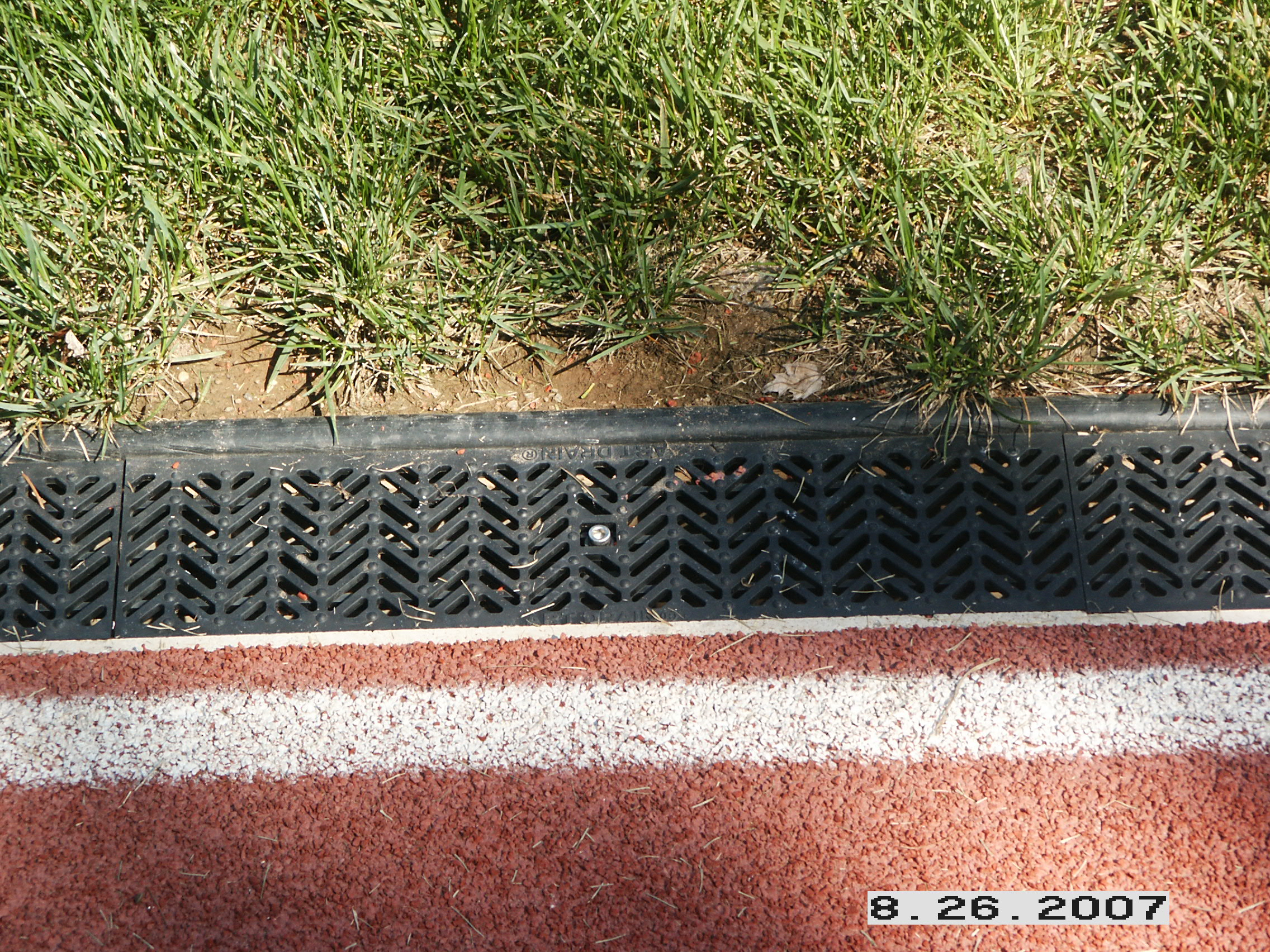

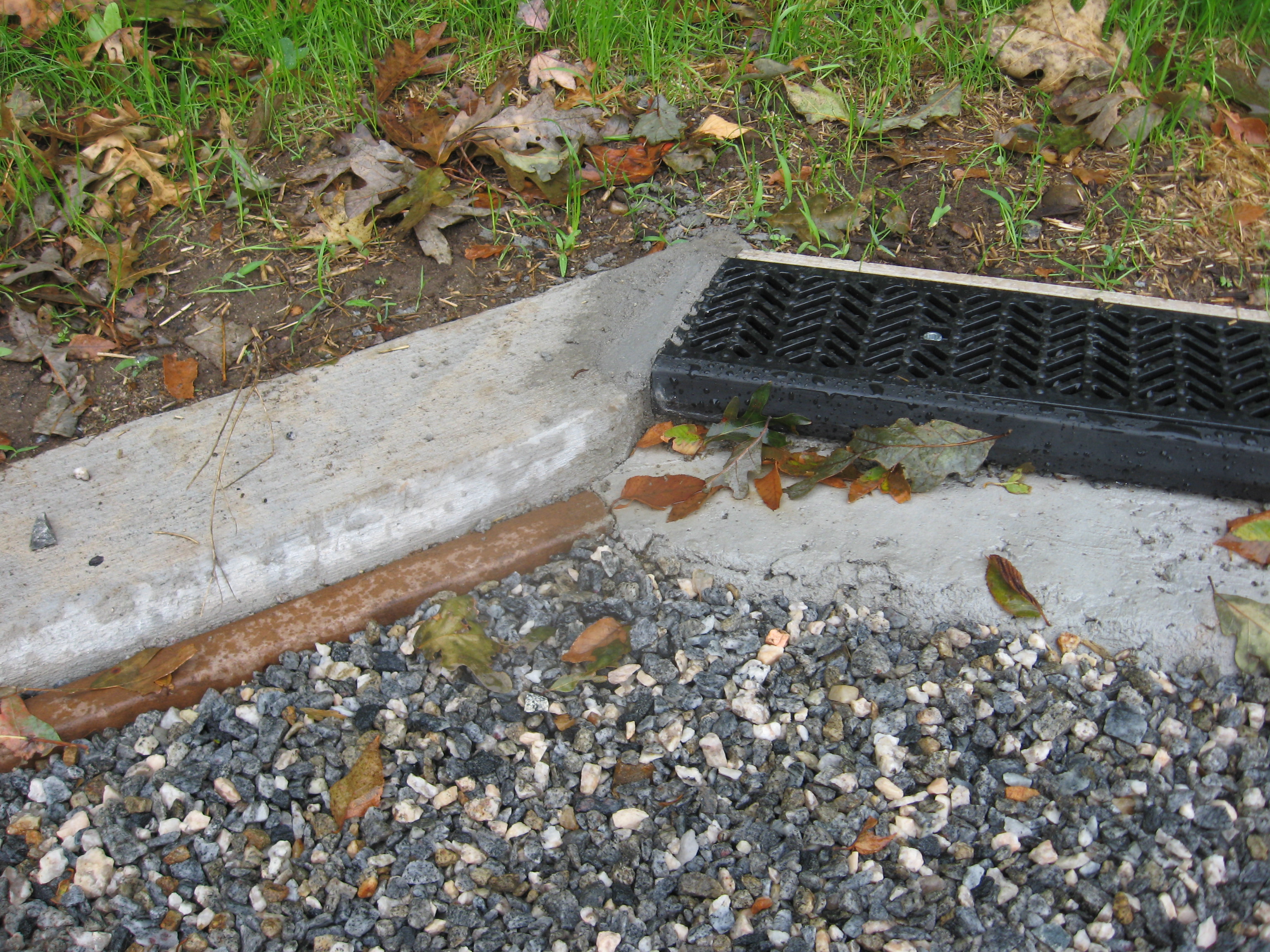

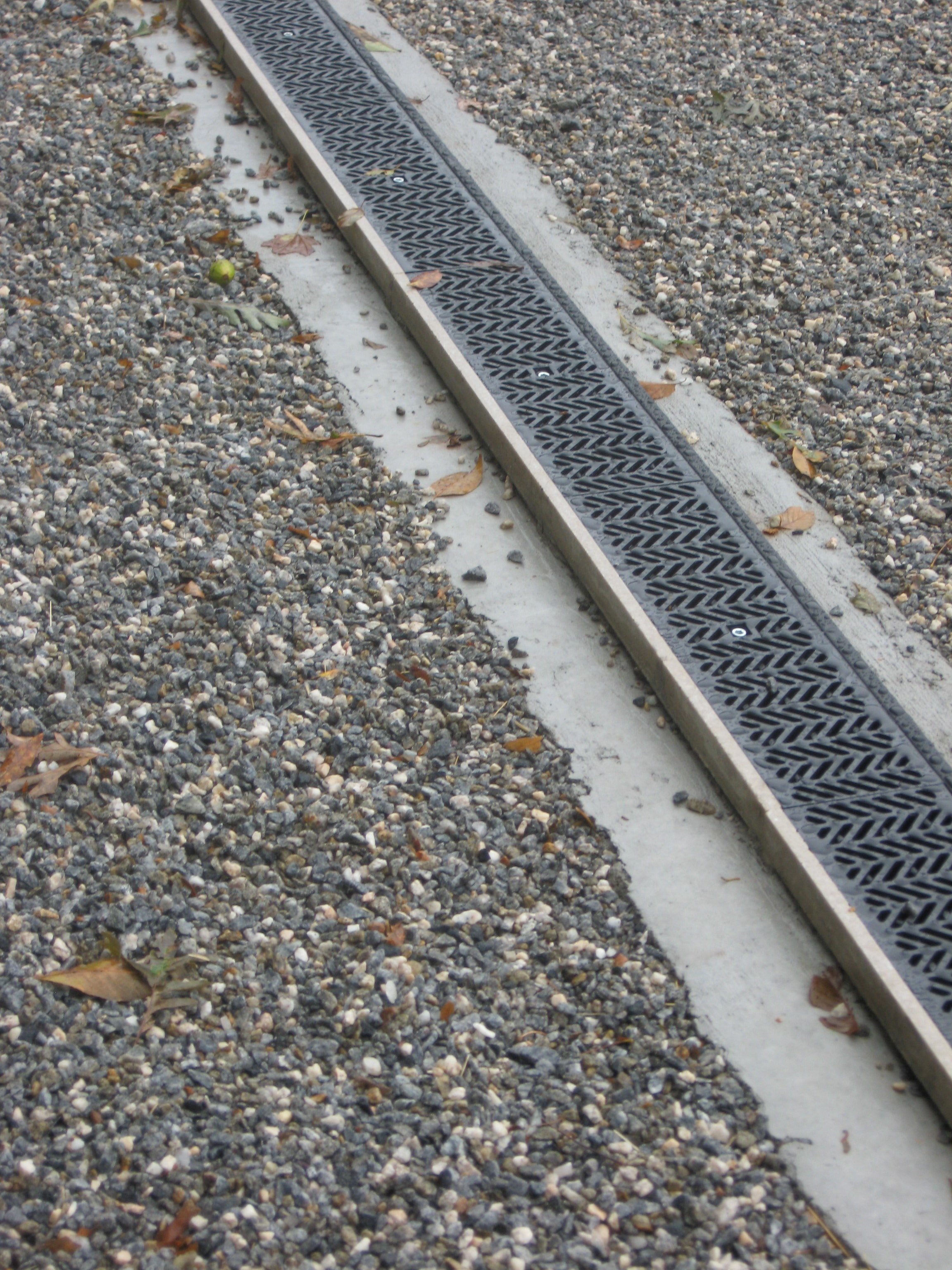

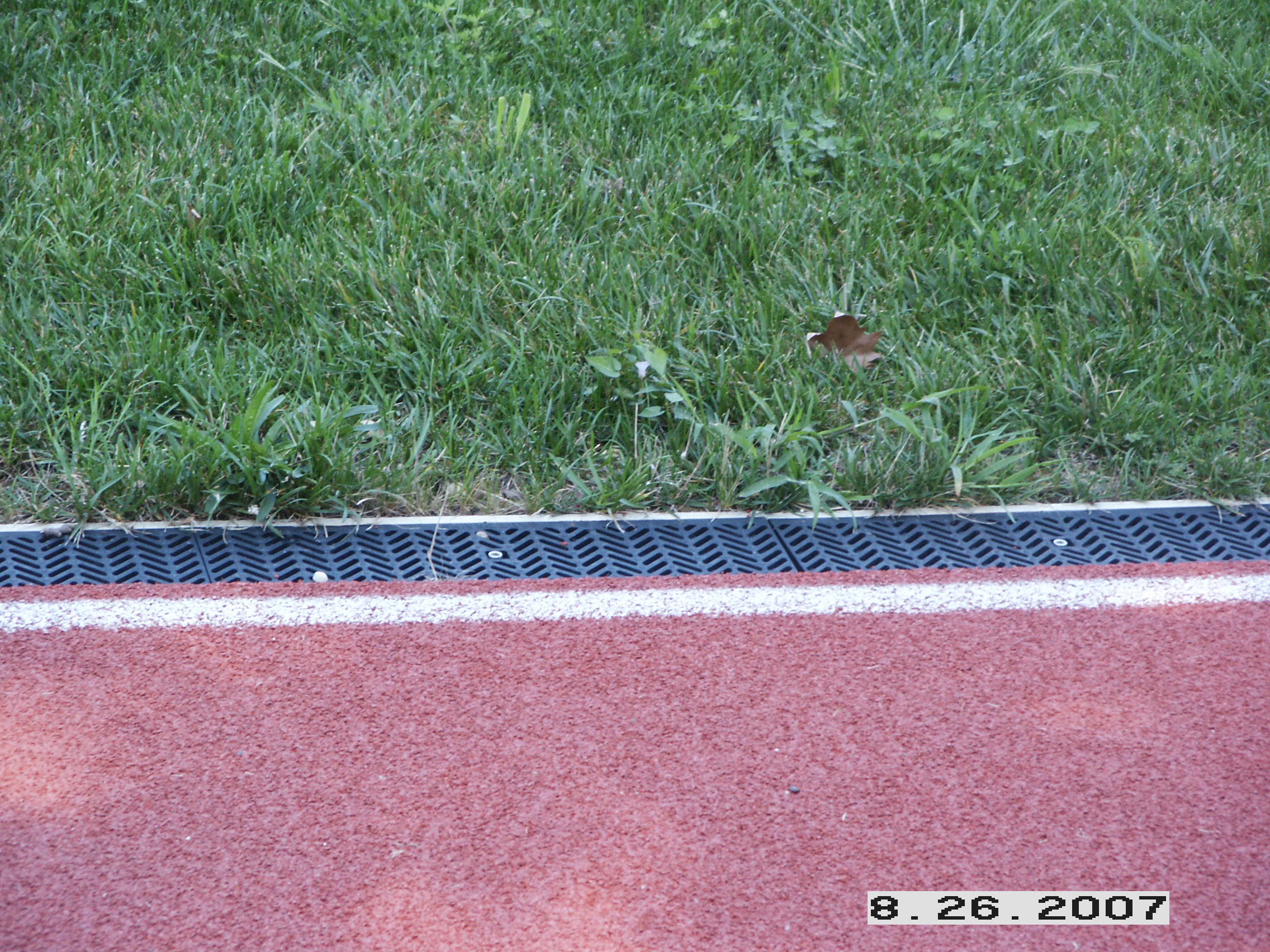

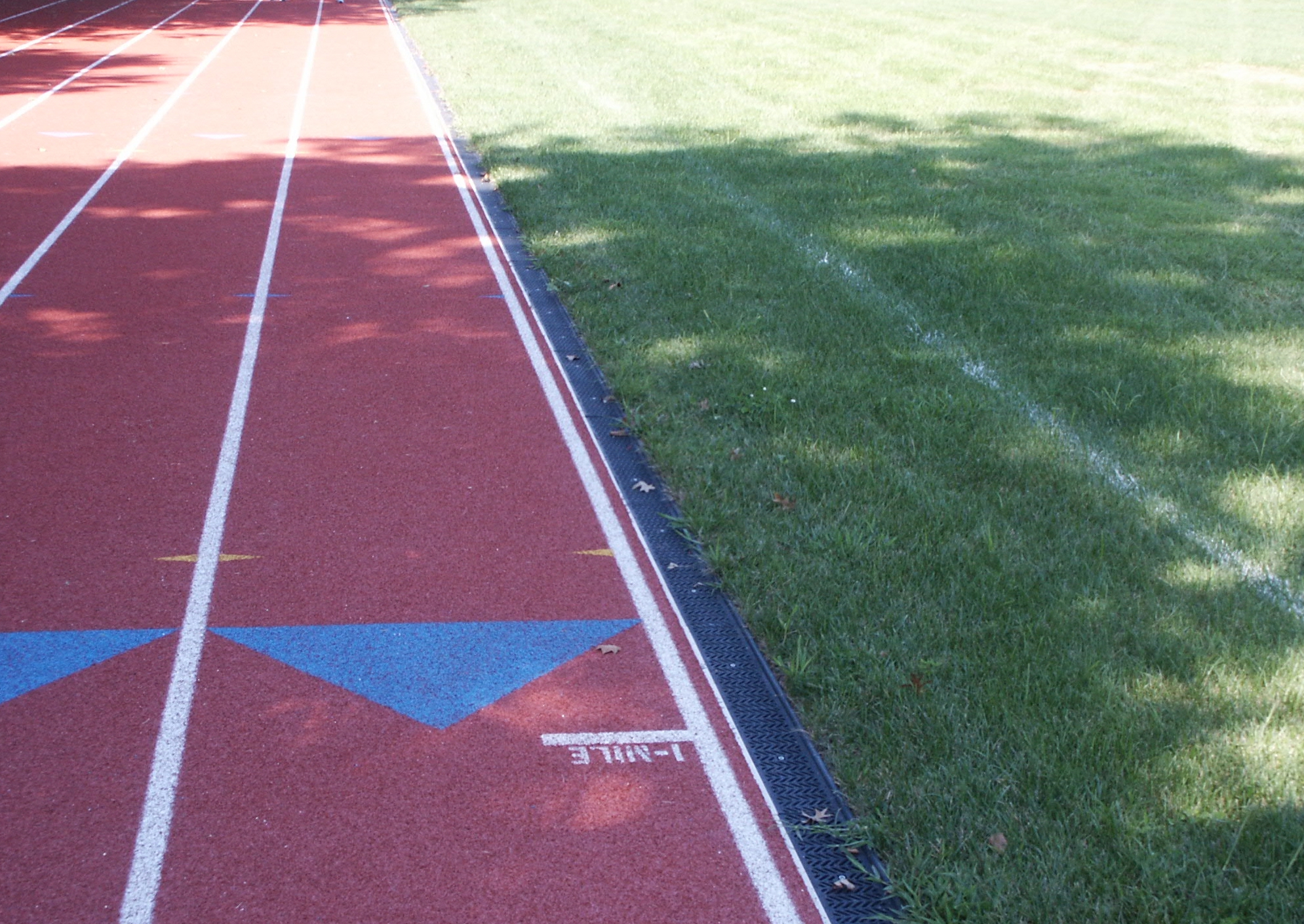

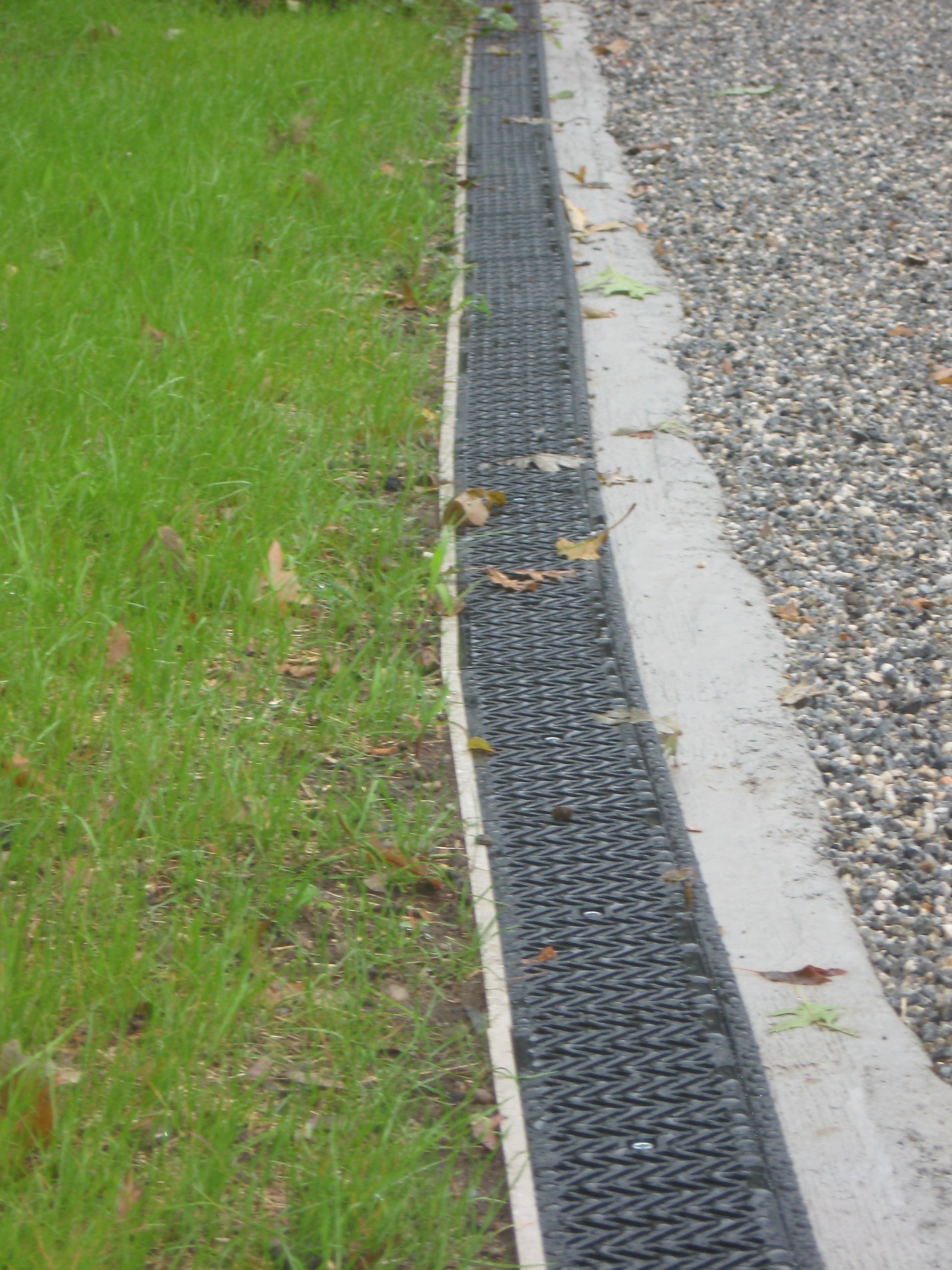

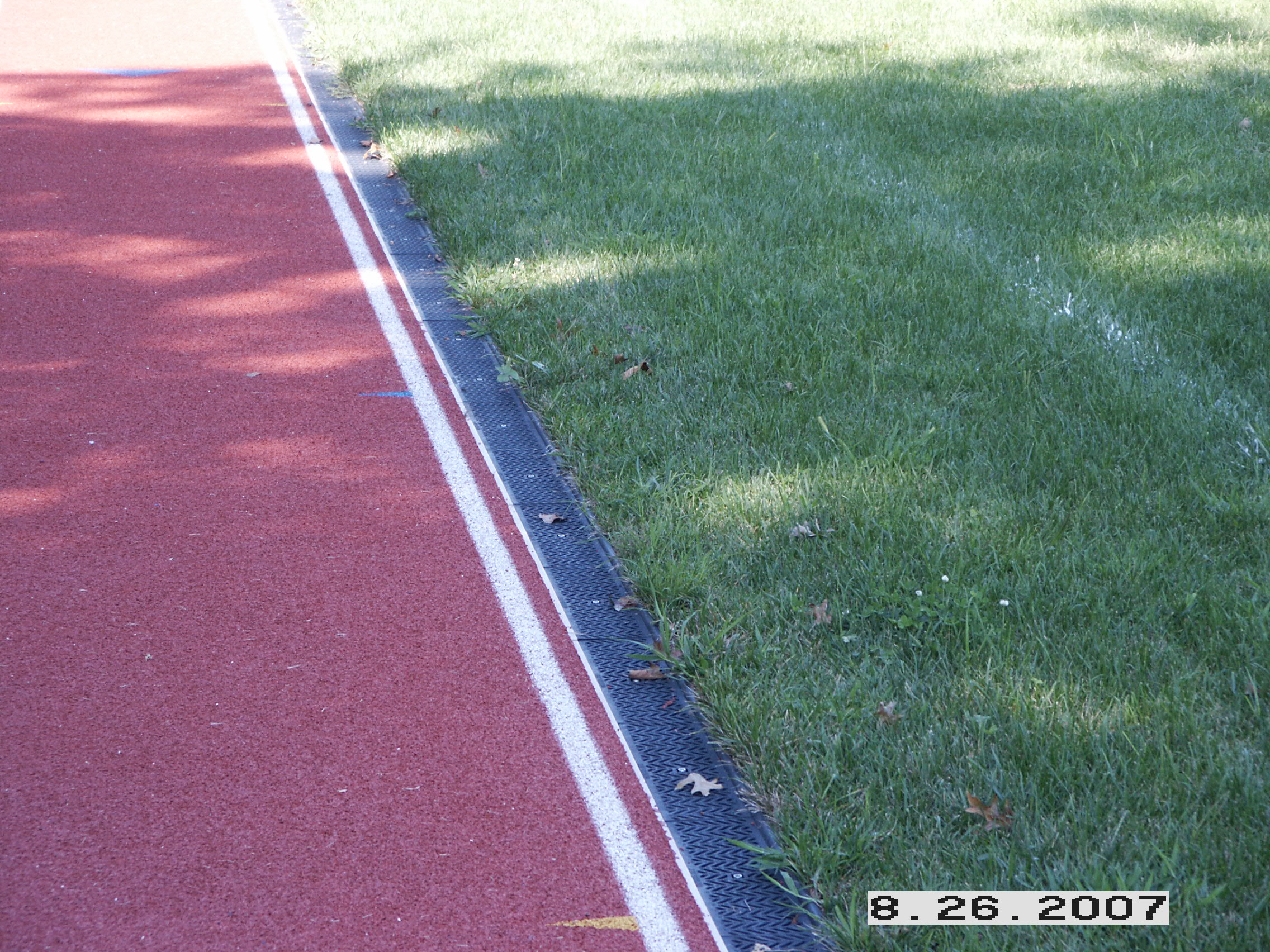

The operative word at SportsEdge is safety. All products are reviewed and designed with the safety of the player in mind. The SportsEdge ProTect trench drain is a modified version of the standard Pro-S. This product has the top polymer concrete edge replaced by a resilient and safe thermoplastic grate lip which is typically installed on the field side of the channel. Athletes are protected from the hard upper edge of the channel, mitigating risk of injury from abrasion or hard impact. If required, the ProTect edging can be installed on both channel edges.
The new edge fits over the top of the channel and is cemented in place. ProTect accepts all SportsEdge grates and locks, which further secure the edging to the channel. Why take a chance? Use ProTect for your next athletic field channel drain application.
ProTect 192 Channel Specifications
| Part # | Width I.D. | Width O.D. | Depth O.D. | Length | Wt. Lbs. |
|---|---|---|---|---|---|
| S-192M | 4.0" | 6.1" | 8.75" | 39.19" | 40.0 |
Catch Basins
The SportsEdge 1/2 meter long 900 catch basins can be located anywhere to facilitate storm drain connections. A typical 400 meter track will include a minimum of eight catch basins. The catch basins use the same ProTect edging as the channels for a seamless appearance. These in-line basins are the same width as the channels so they blend seamlessly into the layout. Removable galvanized steel trash buckets can also be specified for debris interception. Catch basins can accommodate up to 12″ CMP, HDPE, or PVC pipe.
