PRO-S Channel Drain System

Ideal for Outdoor Environmental Conditions Worldwide

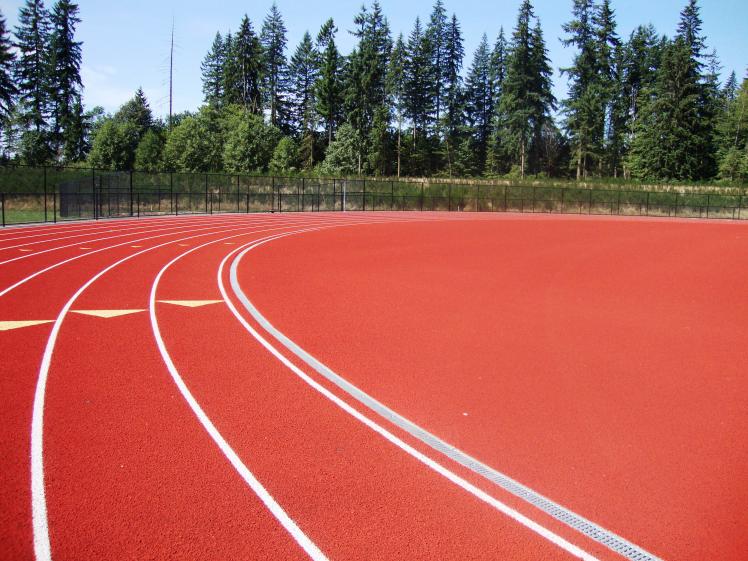

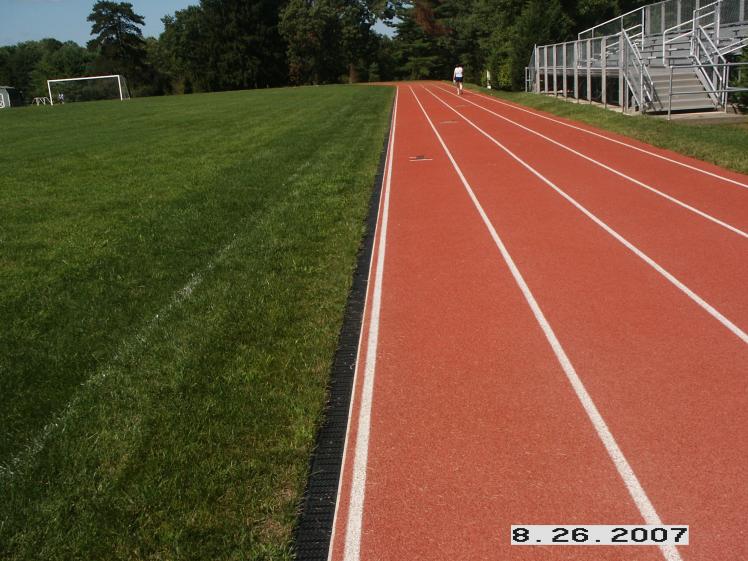

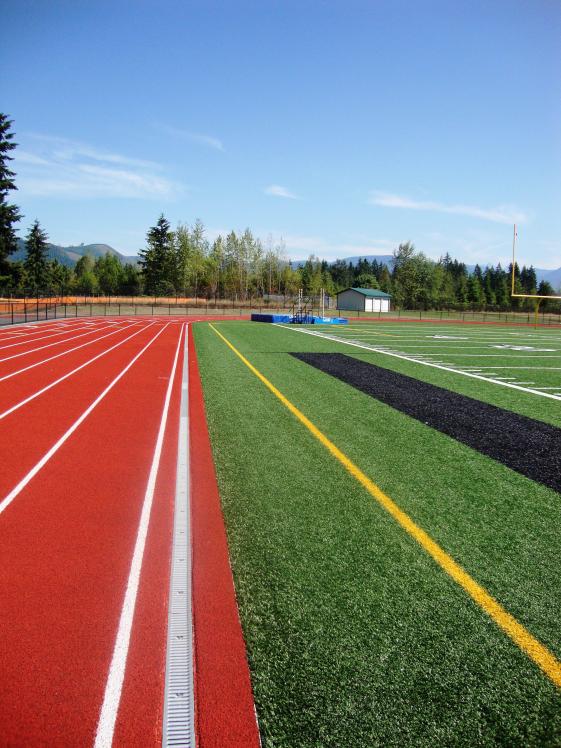

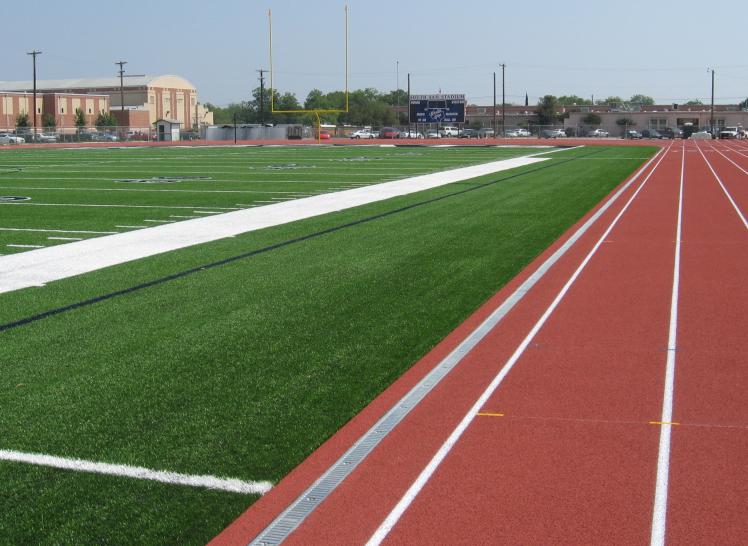

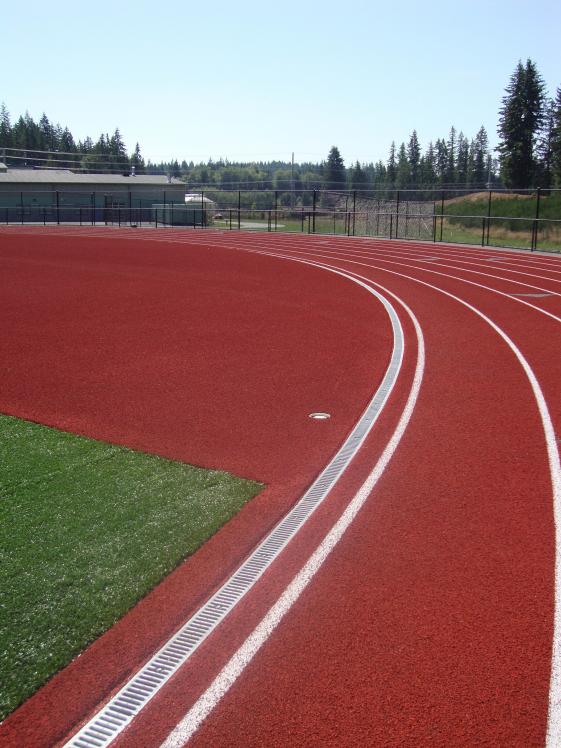

SportsEdge Pro-S Channel Drain System is designed for track drainage, tennis court drainage and other athletic field surface drainage applications.

SportsEdge Pro-S is manufactured of polymer concrete which is made from select quartz aggregate and inert mineral fillers bonded together with high-grade thermoset polyester resin creating products of superior strength, chemical resistance, and durability. Polymer concrete allows no fluid absorption and so is resistant to freeze-thaw cycles. It is also highly UV resistant. These properties make it an ideal material for outdoor environmental conditions worldwide.

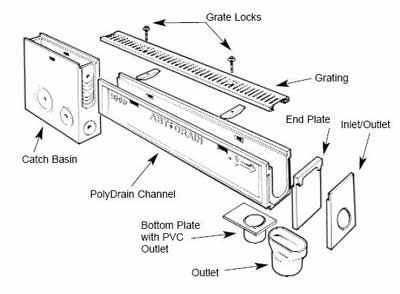

SportsEdge Pro-S drainage channels feature a radius bottom, smooth interior surface, interlocking tongue and groove ends and the patented “Red Dot” grate locking system. The standard Pro-S channel is the S-192 but other channel depths to accommodate particular circumstances are also available.

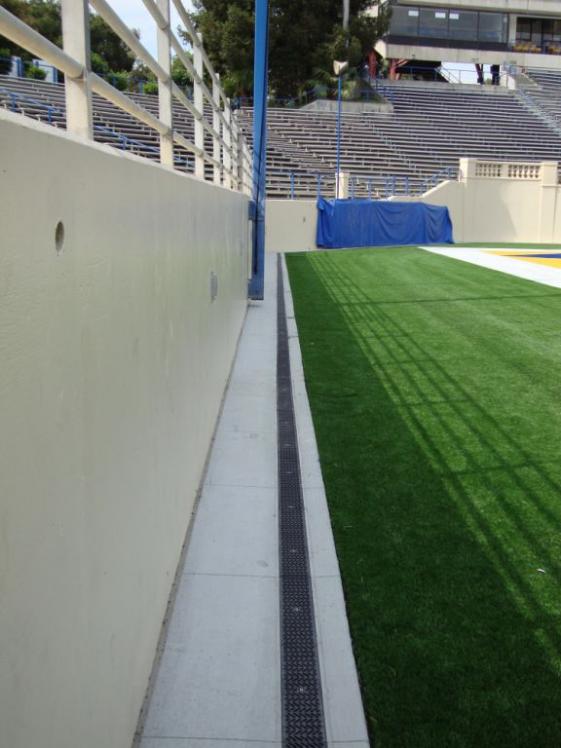

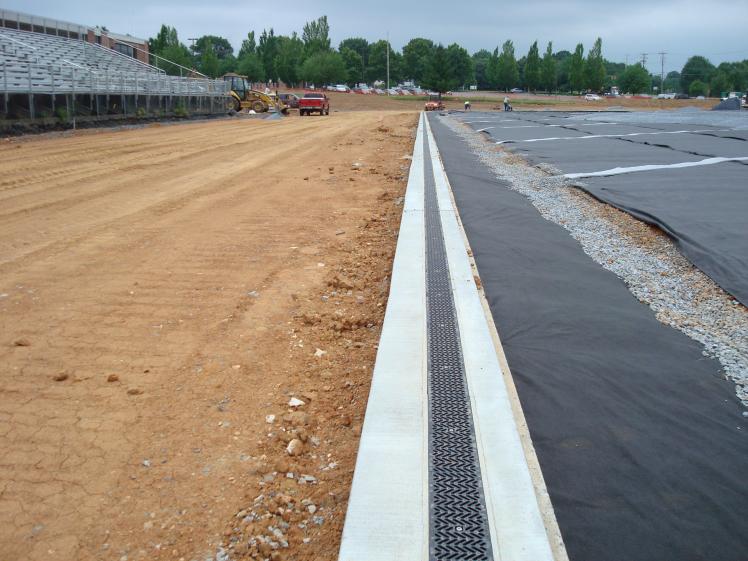

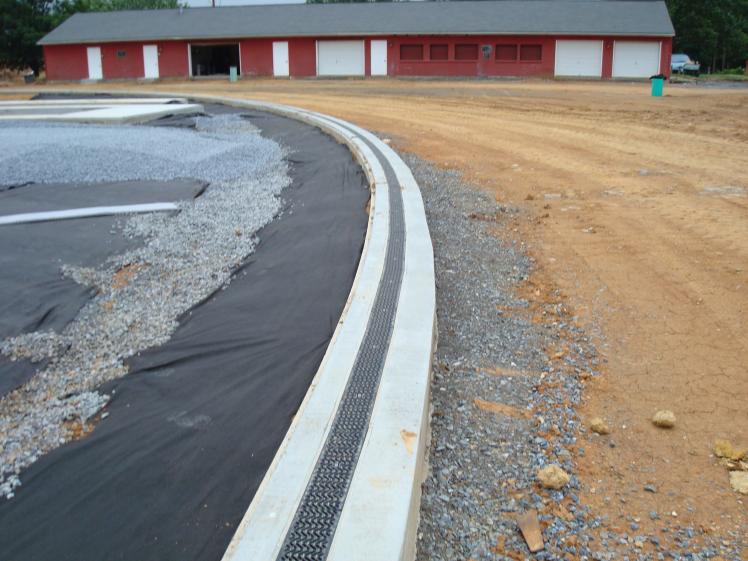

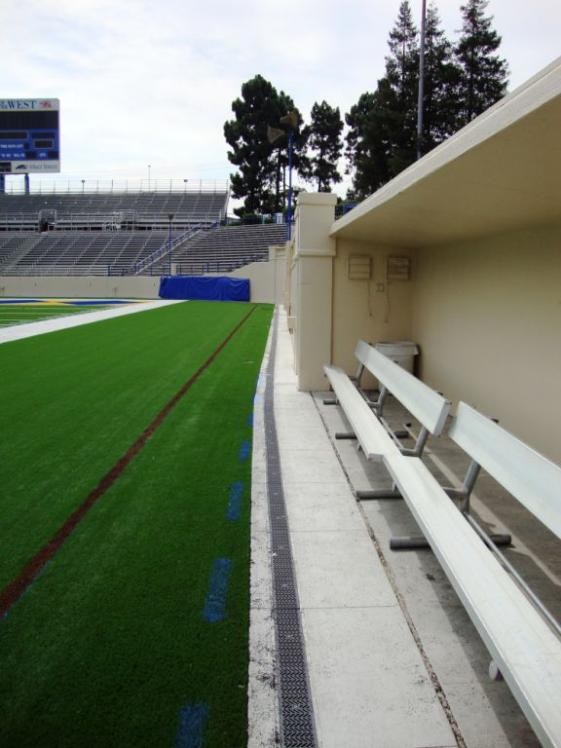

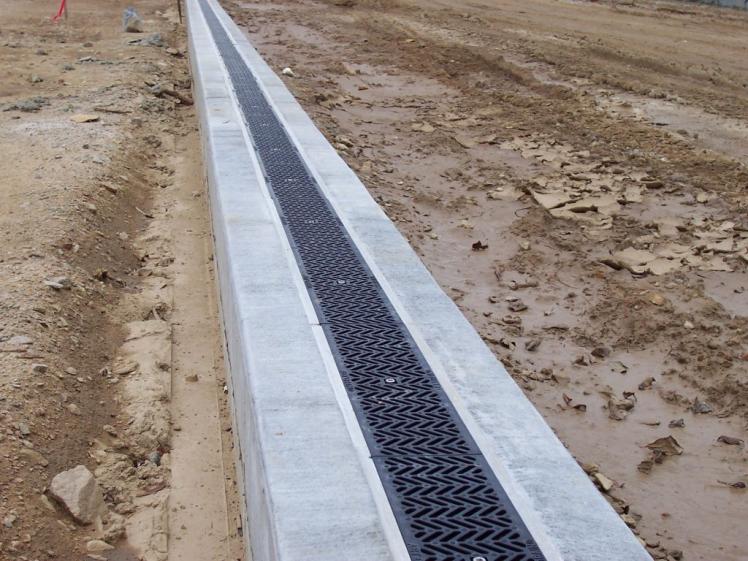

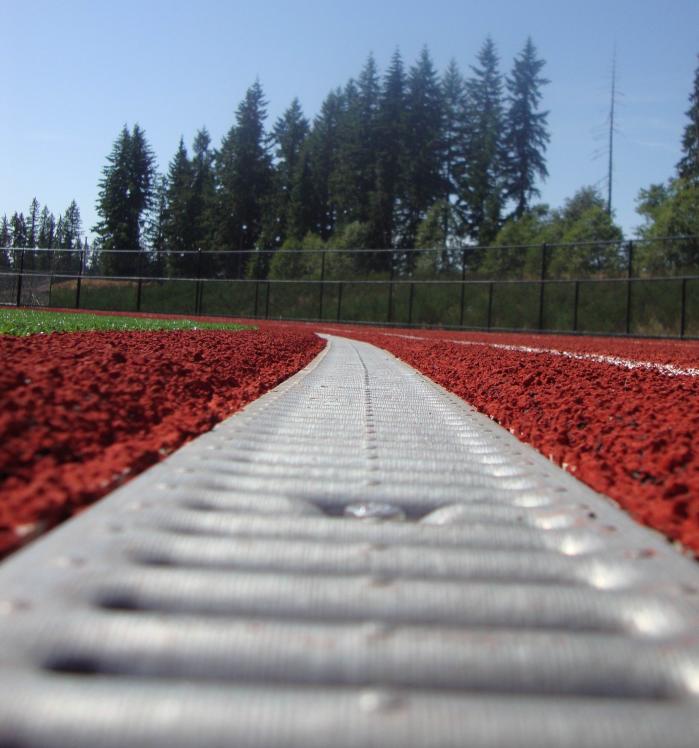

Grate system options vary from thermo-plastic to galvanized steel slotted or perforated to ductile iron. Steel drainage grates are available in one meter and half meter lengths. The thermo-plastic and ductile iron grates are available in half meter lengths. All grates lock securely to the channel with a hands-free locking device consisting of a bolt and toggle bar.

Pro-S Channel Drain Specifications

Part #
Width I.D.
Width O.D.
Depth O.D.
Length
Wt. Lbs.

S-192
4.0"
6.1"
8.75"
39.19"
42.0

Part #	Width I.D.	Width O.D.	Depth O.D.	Length	Wt. Lbs.
S-192	4.0"	6.1"	8.75"	39.19"	42.0

Catch Basins

The SportsEdge 1/2 meter long 900 catch basins can be located anywhere to facilitate storm drain connections. A typical 400 meter track will include a minimum of eight catch basins. These in-line basins are the same width as the channels so they blend seamlessly into the layout. Removable galvanized steel trash buckets can also be specified for debris interception. Catch basins can accommodate up to 12″ CMP, HDPE, or PVC pipe.
