Throwing Circles

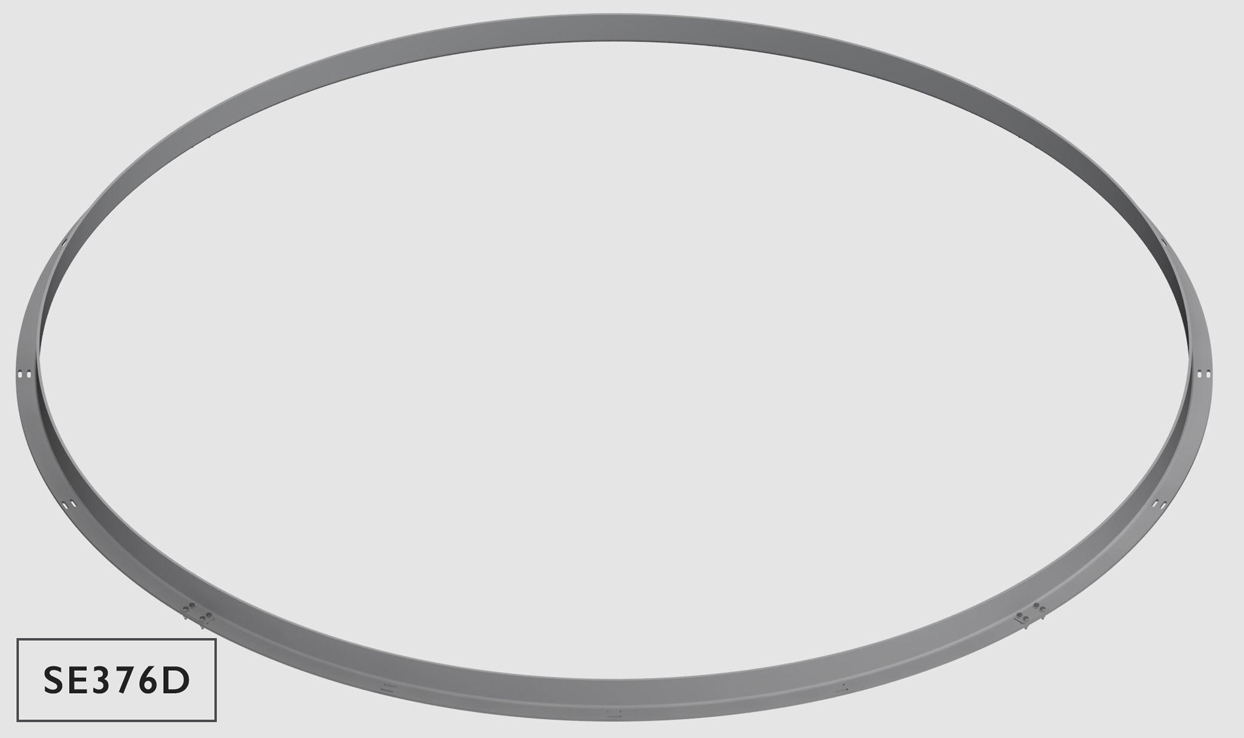

SE376D Aluminum Discus Circle

Supply Unit: (4) Quarter Sections

Meets Specifications For: IAAF, NCAA, NFHS Competition

Material: Extruded 5052-H32 Aluminum

Description: 2” x 3” x ¼” rolled aluminum angle produced in quarter sections field bolted together prior to installation. Hardware included. Stays round during installation. Unit to be blocked up or suspended from pad form for installation.

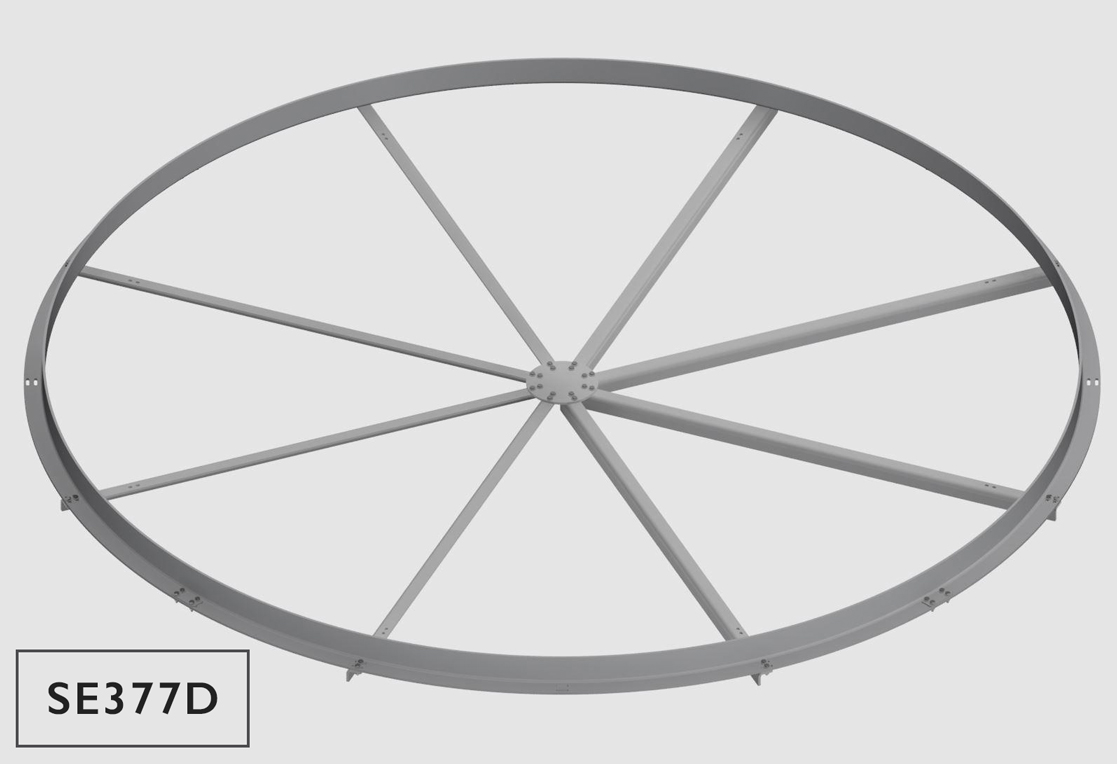

SE377D Aluminum Discus Circle with Cross Bracing

Supply Unit: (4) Quarter Sections, (8) Reinforcing Bars

Meets Specifications For: IAAF, NCAA, NFHS Competition

Material: Extruded 5052-H32 Aluminum

Description: 2” x 3” x ¼” rolled aluminum angle produced in quarter sections field bolted together prior to installation. Circle reinforced with (8) – 1.5” x 1.5” x ¼” aluminum angles connected by ¼” center reinforcing bolt hub. Hardware included. Unit to be blocked up or suspended from pad form for installation.

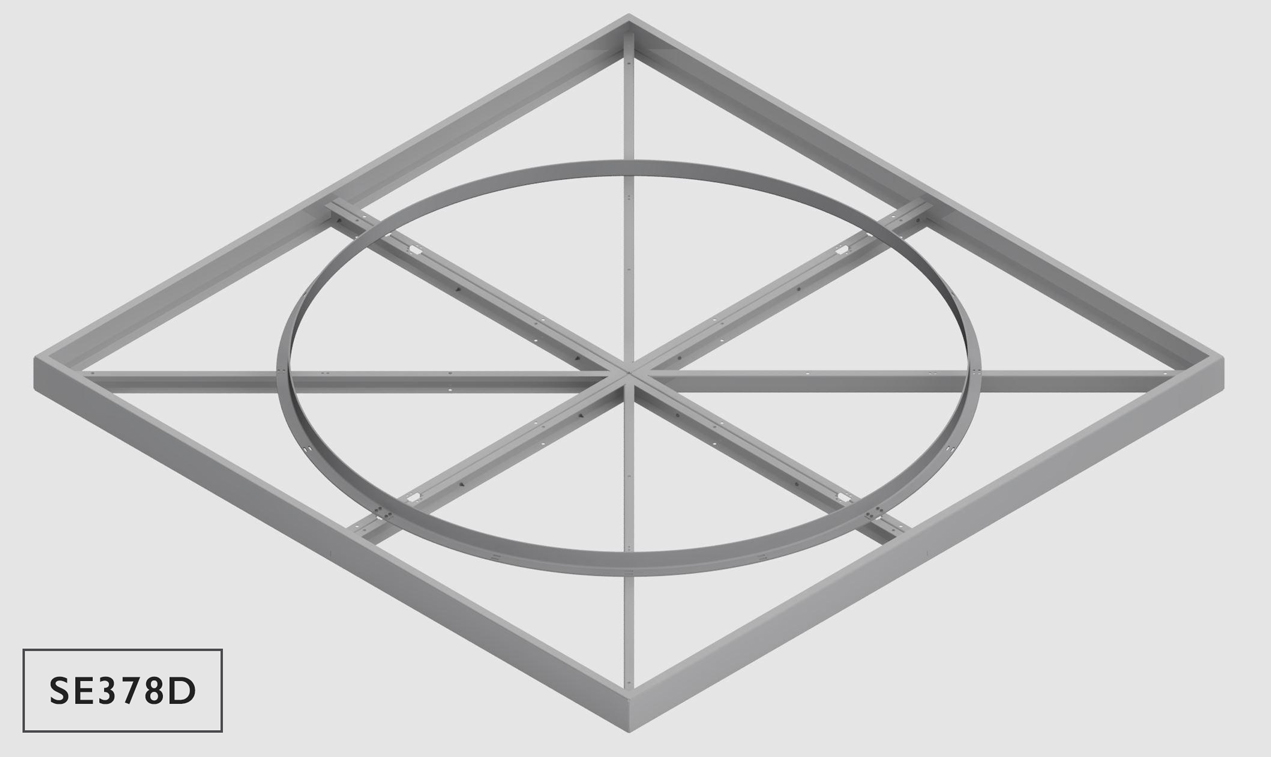

SE378D Aluminum Discus Circle with Full Frame

Supply Unit: (4) Quarter Sections, (4) Base Form Frames

Meets Specifications For: IAAF, NCAA, NFHS Competition

Material: Extruded 5052-H32 Aluminum

Description: 2” x 3” x ¼” rolled aluminum angle produced in quarter sections field bolted together prior to installation. Circle installs into (4) field assembled base forms to create a complete depressed pad form system (10’ x 10’). No additional formwork required.

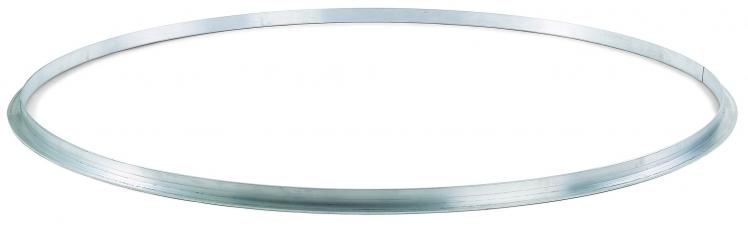

SE376S Aluminum Shot Circle

Supply Unit: (4) Quarter Sections

Meets Specifications For: IAAF, NCAA, NFHS Competition

Material: Extruded 5052-H32 Aluminum

Description: 2” x 3” x ¼” rolled aluminum angle produced in quarter sections field bolted together prior to installation. Hardware included. Stays round during installation. Compatible with all toe boards for depressed pad use (SE3641 & SE3641R). Unit to be blocked up or suspended from pad form for installation.

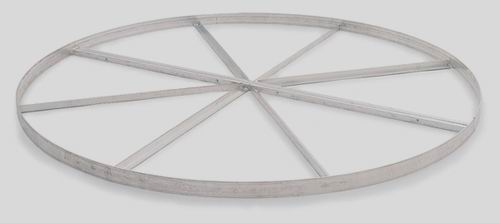

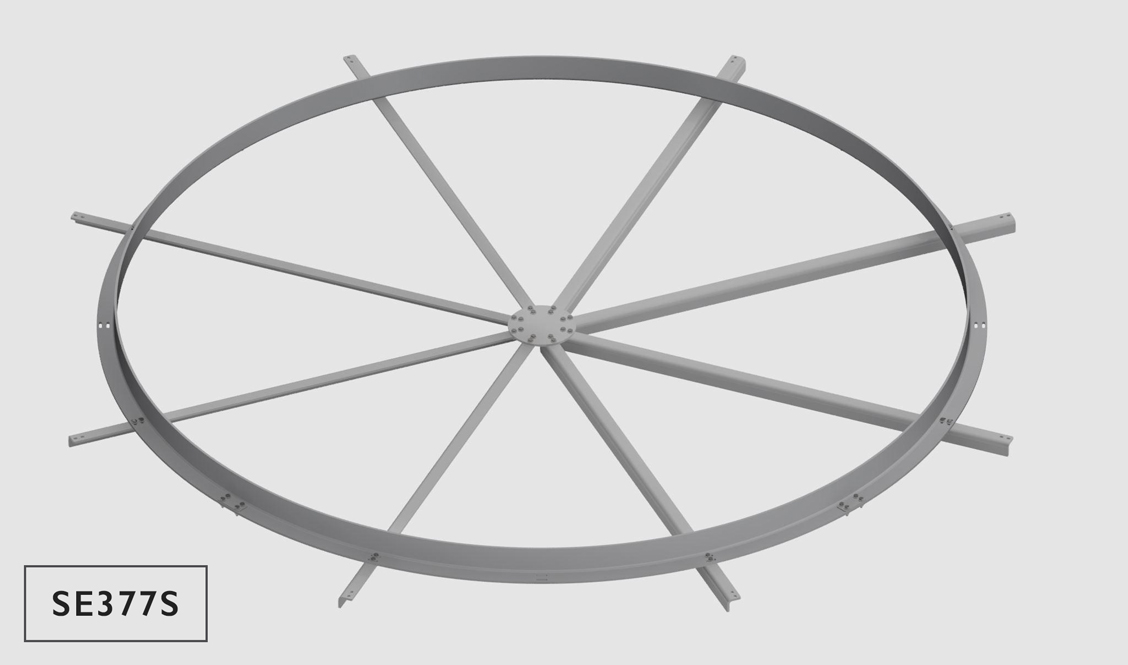

SE377S Aluminum Shot Circle with Cross Bracing

Supply Unit: (4) Quarter Sections W/ (8) Reinforcing Bars

Specification Compliance: IAAF, NCAA, NFHS Competition

Material: Extruded 5052-H32 Aluminum

Description: 2” x 3” x ¼” rolled aluminum angle produced in quarter sections field bolted together prior to installation. Circle reinforced with (8) – 1.5” x 1.5” x ¼” aluminum angle connected by ¼” center reinforcing bolt hub. Hardware included. Compatible with all toe boards for depressed pad use (SE3641 & SE3641R). Unit to be blocked up or suspended from pad form for installation.

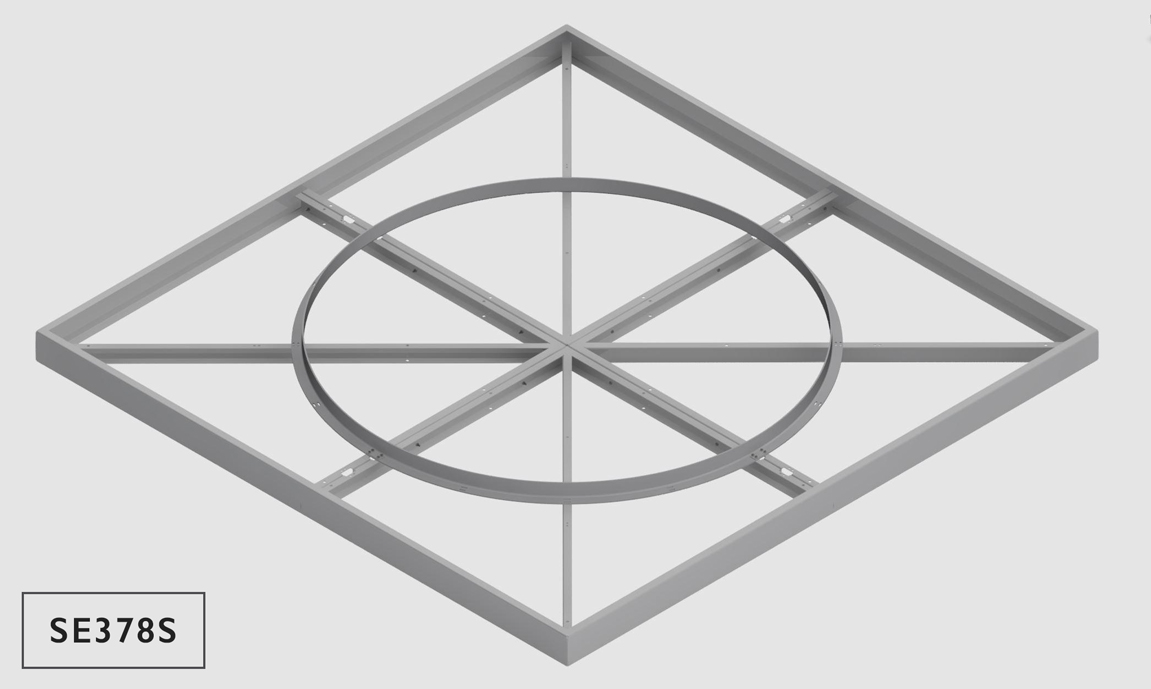

SE378S Aluminum Shot Circle with Full Frame

Supply Unit: (4) Quarter Sections W/ (4) Base Form Frames

Meets Specifications For: IAAF, NCAA, NFHS Competition

Material: Extruded 5052-H32 Aluminum

Description: 2” x 3” x ¼” rolled aluminum angle produced in quarter sections field bolted together prior to installation. Circle installs into (4) field assembled base forms to create a complete depressed pad form system (10’ x 10’). No additional formwork required. Compatible with all toe boards for depressed pad use (SE3641 & SE3641R).

Throw Circles Downloads

  • Track Equipment Brochure PDF
  • Throw Circles CAD Drawings and Details
    • Discus Circles
      • SE376D Aluminum Discus Circle DWG PDF
      • SE377D Aluminum Discus Circle with Cross Bracing DWG PDF
      • SE378D Aluminum Discus Circle with Full Frame DWG PDF
    • Shot Put Circles
      • SE376S Aluminum Shot Circle DWG PDF
      • SE377S Aluminum Shot Circle with Cross Bracing DWG PDF
      • SE378S Aluminum Shot Circle with Full Frame DWG PDF
  • Throw Circles Specifications
    • Discus Circles
      • SE376D Aluminum Discus Circle
      • SE377D Aluminum Discus Circle with Cross Bracing
      • SE378D Aluminum Discus Circle with Full Frame
    • Shot Put Circles
      • SE376S Aluminum Shot Circle Word document
      • SE377S Aluminum Shot Circle with Cross Bracing Word document
      • SE378S Aluminum Shot Circle with Full Frame Word document
