Track Equipment

Take-Off Boards Downloads

  • Track Equipment Brochure
  • CAD Drawings, Details & Specifications
    • SE444 8" Wood
      DWG PDF Word
    • SE444S 8" Synthetic
      DWG PDF Word
    • SE444BL 8" Wood Blanking Lid
      DWG PDF
    • SE43501 12" IAAF
      DWG PDF Word
    • SE4350 12" Wood NCAA
      DWG PDF Word
    • SE446 16" Wood High School
      DWG PDF Word
    • SE446S 16" Synthetic High School
      DWG PDF Word
    • SE446BL 16" Blanking Lid
      DWG PDF
CAD Details Logo

For your convenience, all of our downloadable files can also be found on the CAD Details website.

Take-Off Boards

8" College Take-Off Board Systems

  • Aluminum Support Tray, aluminum leveling base, replaceable white synthetic board or 0.75" marine-grade plywood board (white)
  • Stainless Steel Fasteners
  • Removal & Adjustment Tool
  • Meets High School and NCAA specifications
  • Made in the USA
  • SE444 8" College Take-Off System, Wood
  • SE444S 8" College Take-Off System, Synthetic
  • SE444BL 8" Blanking Lid, Wood TOB

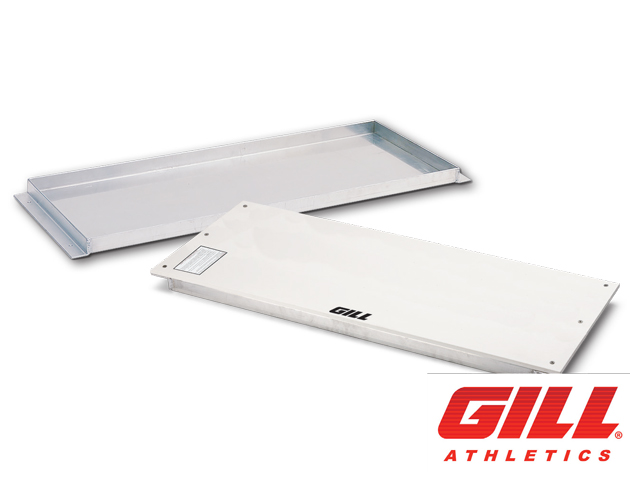

16" High School Take-Off Board System

  • Aluminum Support Tray, aluminum leveling base, replaceable white synthetic board or 0.75" marine-grade plywood board (white)
  • Stainless Steel Fasteners
  • Removal & Adjustment Tool
  • Meets High School Specifications
  • SE446 16" High School Take-Off System, Wood
  • SE446S 16" High School Take-Off System, Synthetic
  • SE446BL 16" Blanking Lid

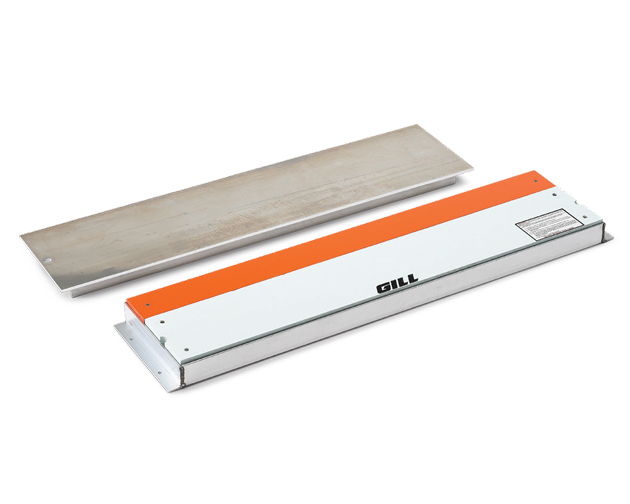

NCAA Adjustable Take-Off Board System

  • Aluminum Support Tray, 14 gage powder coated steel leveling base, replaceable 0.75" marine-grade plywood take-off board (white) and foul board (orange)
  • Blanking Cover, 0.25" Aluminum
  • Stainless Steel Fasteners
  • Removal & Adjustment Tool
  • Meets NFHS and NCAA specifications
  • Made in the USA
  • SE4350 Complete NCAA Take-Off System, Wood
  • SE43501 Complete IAAF Take-Off System, Wood
All products available in Canada and Mexico.
