Sports Field XT Slot Drainage Systems
Safety, Aesthetics & Budget
Effective water management is essential for maintaining the performance, safety, and longevity of athletic fields, running tracks, and recreational courts. SportsEdge® introduces the XT Slot Drain System—a premium sports field drainage solution engineered for durability, efficiency, and seamless installation in high-demand sports environments.
Why Choose the XT Slot Drain System?
Our XT sports field drainage systems are designed for long-term performance, making them ideal for both new facility builds and retrofits. They efficiently eliminate puddling, surface wear, and safety hazards across:
- Running tracks
- Tennis courts
- Synthetic turf and multi-sport fields
- Bleacher areas and backstops
- Other recreational surfaces
Engineered for Strength and Durability

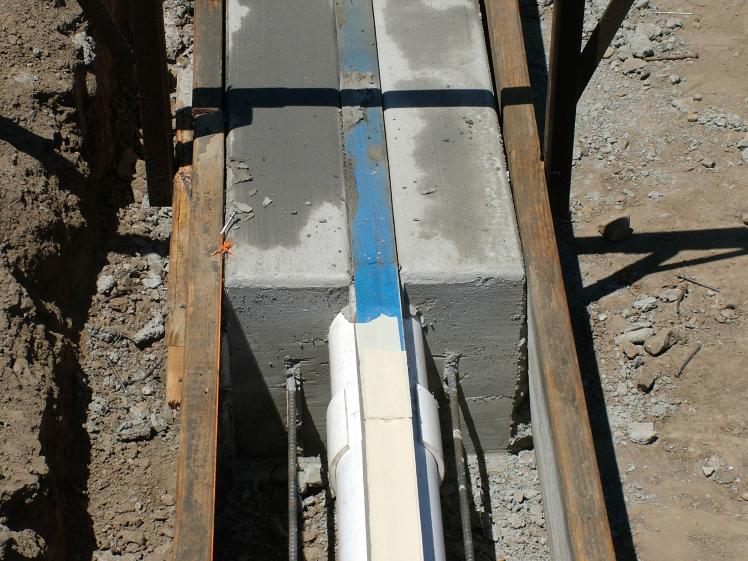

Each channel is crafted from a hybrid of polymer concrete and PVC pipe, providing:
- High strength-to-weight ratio: Ensures robust performance without excessive weight.
- Exceptional resistance: Withstands UV exposure, freeze-thaw cycles, and harsh chemicals.
- Zero fluid absorption: Delivers lasting performance in all climates.
Smart Design for Seamless Installation
The XT Slot Drain System offers innovative features to improve drainage performance and installation speed:
- Continuous 12mm drain slot: Provides efficient water flow while minimizing exposed hard surfaces.
- Interlocking tongue-and-groove ends: Ensure secure alignment and stability.
- Various channel depths: Accommodate site-specific needs.
Additionally, the system's lightweight design (15 lbs/meter for XT-4 and 20 lbs/meter for XT-6) facilitates easier handling and installation than other slot drain systems.
Smart Design for Seamless Installation
The XT Slot Drain System offers innovative features to improve drainage performance and installation speed:
- Continuous 12mm drain slot: Provides efficient water flow while minimizing exposed hard surfaces.
- Interlocking tongue-and-groove ends: Ensure secure alignment and stability.
- Various channel depths: Accommodate site-specific needs.
Additionally, the system's lightweight design (15 lbs/meter for XT-4 and 20 lbs/meter for XT-6) facilitates easier handling and installation than other slot drain systems.
Athlete Safety and Compliance
Designed with athlete safety in mind, the XT Slot Drain System minimizes exposed hard surfaces and features a 12mm (15/32") drain slot that meets A.D.A. requirements, ensuring accessibility and reducing tripping hazards.
Integrated Catch Basins for Total Water Control

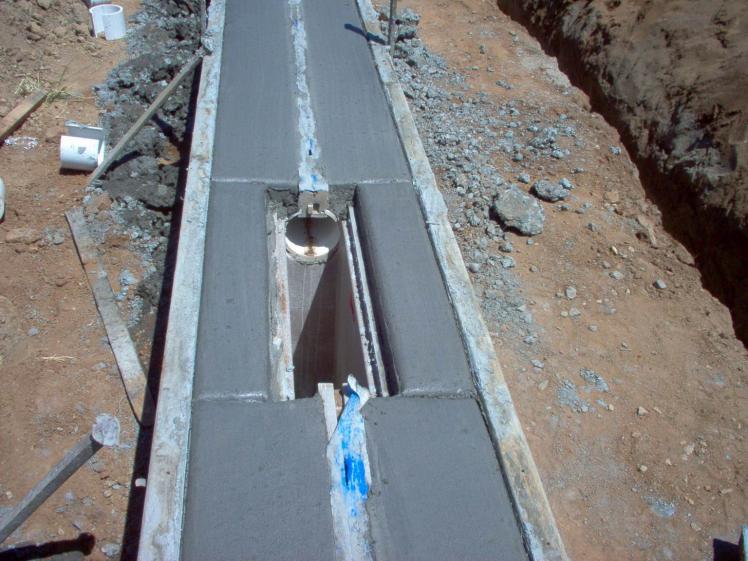

To complete the XT Slot Drain System, optional half-meter-long catch basins can be added to connect to stormwater piping. Key features include:
- Seamless integration: Aligns perfectly with channel runs.
- Compatibility: Accommodates up to 12" CMP, HDPE, or PVC pipes.
- Optional removable galvanized steel trash buckets: Assist with debris control.
A recommended layout includes a minimum of eight basins per standard 400-meter track to ensure optimal drainage.
XT Slot Drain System Specifications
- XT-4: Mated with a 100mm diameter PVC pipe.
- XT-6: Uses a 150mm pipe for higher capacity applications.
Both models feature a maximum 50mm wide exposed surface with a continuous 12mm drain slot, combining efficiency with a clean, aesthetic appearance.
Get the XT Slot Drain System from SportsEdge®
If you're seeking drainage systems that deliver long-term, worry-free water management, the XT Slot Drain System from SportsEdge® is your trusted solution. Our products are engineered with precision and built to withstand the toughest environments, making them suitable for various locations, including tracks, fields, baseball facilities, and more. Contact SportsEdge® today to request a quote or speak with an expert about your drainage needs.
Frequently Asked Questions About XT Slot Drain Sports Field Drainage Systems
Is the XT Slot Drainage System ADA-compliant?
Yes, the XT Slot Drain System features a 12mm (15/32") slot opening, meeting A.D.A. requirements for accessibility. This ensures safe and compliant installation in public and school athletic facilities.Can the XT Slot Drain System handle different field layouts?
Yes, the XT system includes radius sections for easy installation around curved areas like the D-zone of running tracks. Its modular design supports flexible configurations for a variety of field layouts and drainage needs.What types of catch basins are available for the XT system?
SportsEdge® offers the XT900 half-meter catch basin, which integrates seamlessly with XT channel runs. These basins accommodate up to 12” CMP, HDPE, or PVC pipe and include optional removable trash buckets for simplified maintenance.How many catch basins should I use for a standard track?
A typical 400-meter track installation requires at least eight catch basins—three in each straightaway and one at each radius. This layout ensures effective stormwater management and reliable performance.Is the XT Slot Drain System suitable for budget-conscious projects?
Absolutely. The XT Slot Drain System is engineered to meet the needs of schools and municipalities. It balances performance, durability, and affordability, making it one of the most cost-effective sports field drainage systems available.
