Sport Slot Drain System
Safety, Aesthetics & Budget

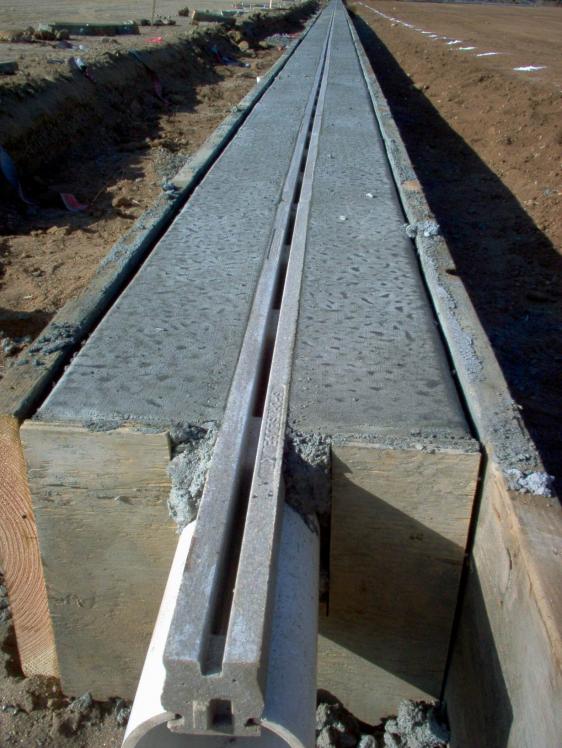

SportsEdge® is a division of ABT, Inc., the leading manufacturer of Trench Drain and Stormwater Management products in the United States. All SportsEdge track drain systems have been developed after extensive market research with athletic directors, owners, and designers. This research led us to stormwater management system designs that consider the athlete’s safety, aesthetics, and school budgets. XT Slot Drain System, a hybrid of polymer concrete and PVC pipe is one of those innovations. The XT-4 is mated with a 100mm diameter PVC pipe and the XT-6 uses a 150mm pipe for higher capacity applications.
This versatile and economical drain system has a maximum 50mm wide exposed surface with a continuous 12mm drain slot. Hundreds of miles of XT has been installed since its inception with a 100% success rate.
Cost Effective: | Fits any construction budget |
Easy Installation: | 2-meter lengths for the straightaways means half the joints & faster installation than other drains. |
Light Weight: | Weighing only 15 lbs/meter for the XT-4 and 20 lbs/meter for the XT-6, XT installs much easier than other slot drain systems. |
Athlete’s Safety: | Minimizes exposed hard surfaces. |
A.D.A. Compliant: | The 12mm (15/32″) drain slot meets A.D.A. requirements. |
Longevity: | The best designed and most durable slot drain system. |
Aesthetics: | Clean lines and unmatched finished appearance. |
Hydraulics: | PVC’s low roughness coefficient improves flow. |
Radius Sections: | Radius channels for installation around the D-Zone are 1-meter long. |
Catch Basins
The SportsEdge XT900 catch basins (1/2 meter long) can be located anywhere to facilitate storm drain connections. A typical 400 meter track will include a minimum of eight catch basins. These outlet boxes typically will be located as follows; three in each straight away (6) and one in the middle of each radius (2). Catch basins can accommodate up to 12″ CMP, HDPE or PVC pipe. The XT Catch Basin cover is removable and allows for easy access for clean out and maintenance purposes.
